专注钢铁冶金高温重载工况的耐磨长寿化解决方案。高炉布料溜槽、烧结单辊系统、球团高压辊——自研材料 + 结构设计，把设备寿命做到常规产品的 2~5 倍。 Wear-resistant, long-life solutions for high-temperature, heavy-duty conditions in iron and steel. Blast furnace distribution chutes, sintering single-roller systems and pelletizing HPGR rolls — proprietary materials plus structural design deliver 2–5× the service life of conventional products.
湖南德尚源耐磨工业有限公司成立于 2005 年，是专业从事耐磨产品研发、制造与抗磨损技术服务的国家高新技术企业。公司拥有高炉布料溜槽、烧结单辊篦板、高压辊等多项专利技术，经十余年工业化应用与迭代优化，形成了自有的研发理念与专有技术体系。 Founded in 2005, Hunan Deusino Wear Resistant Industry Co.,Ltd. is a national high-tech enterprise specializing in the R&D, manufacture and technical service of wear-resistant products. Holding patents across blast furnace distribution chutes, sintering grate plates and HPGR rolls, the company has built its own development philosophy and proprietary technology through more than a decade of industrial application and iteration.
产品技术含量高、耐磨寿命长、工况针对性强、使用更安全可靠，广泛应用于钢铁冶金、矿山、电力、水泥、工程机械、造纸等工业领域。我们的目标很直接——成为帮助你提升整机或部件耐磨寿命最值得信赖的合作伙伴。 Our products combine high technical content, long wear life, strong adaptability to specific working conditions and safer, more reliable operation. They serve iron & steel metallurgy, mining, power, cement, construction machinery and paper industries. Our aim is straightforward: to be the partner you trust most for extending the wear life of your equipment and components.
每条产品线都从具体失效模式出发：烧穿、变形、衬板脱落、内凹磨损、密封失效、轴承偏载——先定位问题，再定材料与结构。 Every line starts from a specific failure mode — burn-through, distortion, liner detachment, concave wear, seal failure, eccentric bearing load. We locate the problem first, then define the material and structure.

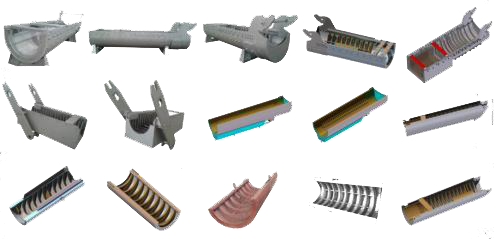

高炉最关键的炉顶设备。2006 年起五代迭代，行业唯一适应超高温工况长期安全稳定运行，并能优化布料矩阵助力增产降焦比。 The most critical furnace-top component. Five generations since 2006 — the industry's only chute in safe, stable long-term service under ultra-high temperature duty, able to optimise the charging matrix.
防烧 · 耐磨 · 抗弯 · 节能。等离子喷涂高温热障耐磨涂层，四项改进分区域解决烧损、磨损、变形与热能损失。 Burn-, wear- and distortion-resistant, and energy-saving. A plasma-sprayed thermal barrier coating plus four zoned improvements address burning, wear, bending and heat loss.

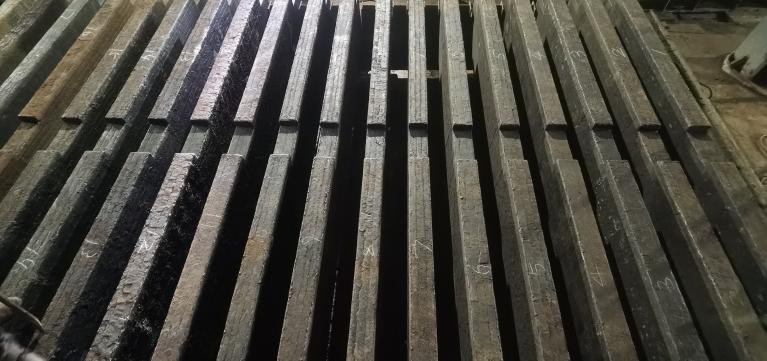

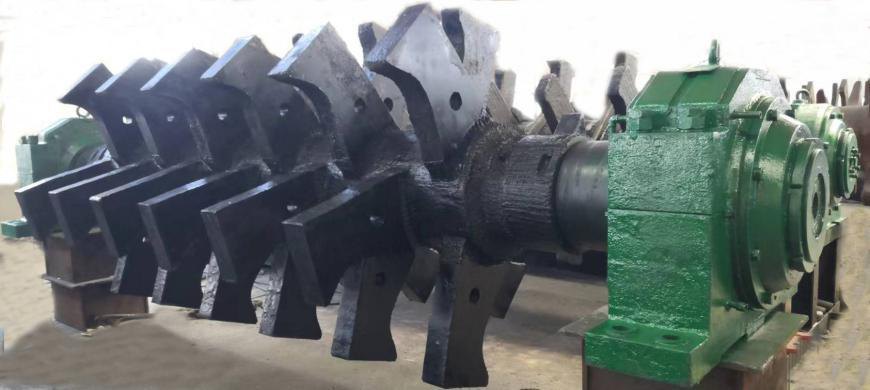

篦板、单辊转子、导槽体、下料斗四部分整体长寿化。最高工况 950℃，堆焊层 800℃ 下仍保持 HRC60 以上。 Grate plates, rotor, guide chute and hopper upgraded as one system. Up to 950 ℃ service; the overlay retains HRC60+ at 800 ℃.

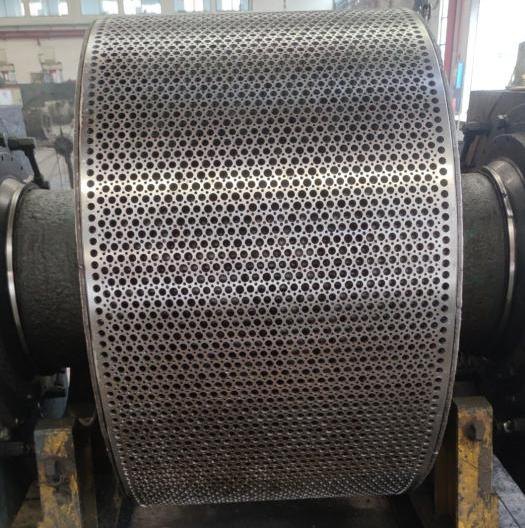

行业唯一包保 3~6 年，膨润土低添加、零增加。六大核心技术解决柱钉磨损过快、辊面内凹、边部坍塌三大顽症。 The industry's only HPGR guaranteed 3–6 years, with low bentonite addition and zero increase. Six core technologies address rapid stud wear, concave profile and edge collapse.
负载均衡 · 密封可靠 · 润滑无忧。五大核心技术解决台车变形导致的轴承偏载、密封失效与润滑不良。 Balanced load, reliable sealing, dependable lubrication. Five core technologies counter the eccentric loading, seal failure and poor lubrication caused by pallet car distortion.

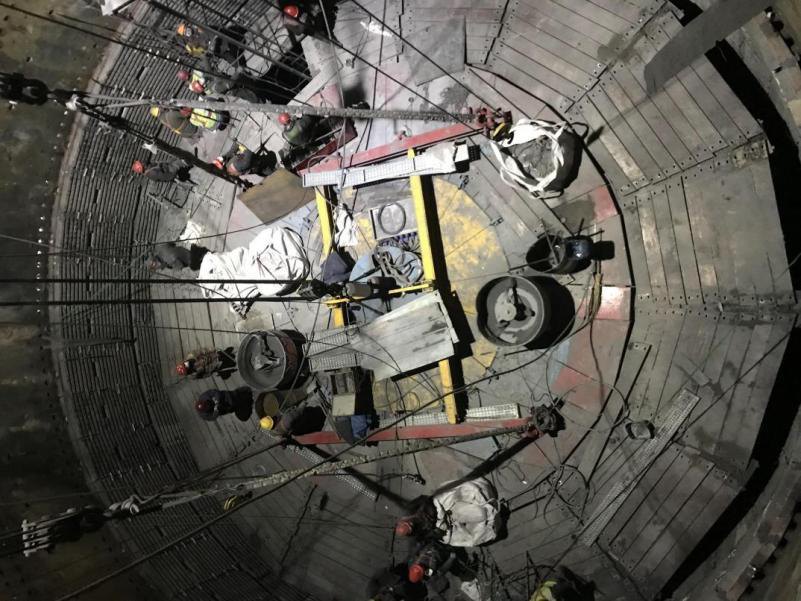

安全可靠 · 快速装卸 · 承重量大 · 变径快捷。机动伸缩变径，替代传统数天搭建工作平台的做法。 Safe, quick to handle, high in capacity and rapid to adjust. Powered diameter change replaces scaffolding that used to take days.
同类产品往往只解决"耐磨"，但高温工况下的失效大多来自烧损、变形、脱落与结构提前终止。我们把四条技术线捆在一起设计。 Competing products usually address abrasion alone, yet most high-temperature failures come from burn-through, deformation, detachment and premature structural failure. We design all four lines as one.
DSYG8-21 耐高温外壳材料、DSYH900 激光熔覆难熔耐磨金属、DSYH600 中温耐磨料、DSE15 钨合金柱钉，按温度区间分别配材。 DSYG8-21 high-temperature shell alloy, DSYH900 laser-clad refractory wear metal, DSYH600 for mid-range temperatures and DSE15 tungsten-alloy studs — matched to each temperature band.
900~1000℃ 硬度不降反升Hardness rises at 900–1000℃热应力定向释放技术防止变形影响布料矩阵，无受力联接焊缝设计防止热裂纹，长鹅头设计避开接口高温区烧损。 Directional thermal-stress release prevents distortion from disturbing the charging matrix; load-free weld joints stop thermal cracking; the extended gooseneck keeps interfaces out of the hottest zone.
多重防翘防脱落内衬Multi-layer anti-lift liner整流扁平出口控制料流厚度与方向，料环带宽度不发散。配合布料矩阵优化可拓宽冶炼平台，实测均降焦比约 3%。 A rectified flat outlet controls stream thickness and direction so the burden ring stays tight. Combined with matrix optimization it widens the smelting window, cutting coke rate by about 3%.
CO₂ 最高减排 50.57 kg/tUp to 50.57 kg CO₂/t cut耐磨钉结构让耐磨层深入基体，溜槽可耐磨厚度达 120~150mm；中低合金基体可用 DSYH-2000 现场堆焊补强甚至补块。 Wear-stud structures drive the protective layer into the substrate, giving chutes 120–150 mm of usable wear thickness; low-to-medium alloy bodies accept on-site DSYH-2000 overlay repair or patching.
耐磨层 120~150mm120–150 mm wear layer

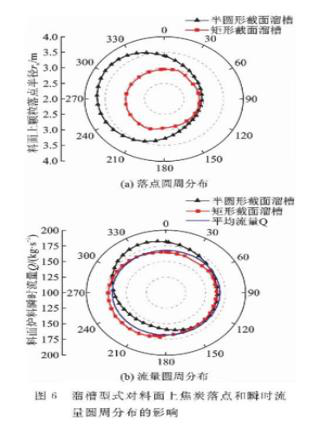

矩形截面溜槽布料时，炉料落点圆周偏心远小于半圆截面（落点半径最大相差 0.79 米），瞬时流量圆周分布曲线也更贴近平均流量曲线。这是我们选择前方后圆与扁平出口结构的依据。 With a rectangular section, circumferential eccentricity of the burden landing point is far smaller than with a semi-circular one (up to 0.79 m difference in landing radius), and the instantaneous flow curve tracks the mean much more closely. This is the basis for our front-square/rear-round and flat-outlet designs.
相关成果已在中国金属学会炼铁学术会议发表，并取得日本发明专利授权（特許第7745935号），韩国在审。 The results have been presented at Chinese Society for Metals ironmaking conferences and granted a Japanese invention patent (特許第7745935号), with a Korean application under examination.
查看完整技术与专利清单Full technology & patent list我们习惯用"寿命不达标不予结算"的方式进场。以下三个案例都有明确的前后对比。 We typically enter a plant on terms of "no payment if the life target is missed". Each case below carries a clear before-and-after comparison.
原装进口溜槽规定 6 个月更换，高工况下曾出现仅 4 个月的情况。2018 年 9 月试用我方第 3 代产品，承诺低于 12 个月不予结算；试用 10 个月拆检后即被指定为唯一使用产品。 The original imported chute required replacement every 6 months, dropping to 4 under severe conditions. Our 3rd-generation product entered trial in September 2018 with a "no payment below 12 months" commitment; after a 10-month inspection it was designated the sole approved product.
鲅鱼圈 4038m³ 曾连续两次在 5 个月突发失效、紧急休风。第 2 代产品试用 9 个月中途下线检查，外壳完整、变形与磨损量都小，最终达 18 个月。现已扩展为本部 8 座 + 鲅鱼圈 2 座的功能承包合作。 The 4038 m³ furnace at Bayuquan suffered two sudden failures at 5 months, forcing emergency blow-downs. Our 2nd-generation chute was inspected at 9 months with the shell intact and minimal wear, ultimately reaching 18 months. The relationship has since grown into function contracting for 8 furnaces at headquarters plus 2 at Bayuquan.
原供应商溜槽平均寿命 195 天，且 90 天需下线修复，曾发生衬板翻起被迫休风 5 小时的事故。换用新型精准布料溜槽后，料流宽度收窄 33%，煤气利用率与燃料比同步改善。 The previous supplier's chute averaged 195 days and needed off-line repair at 90 days; one liner lift-up forced a 5-hour blow-down. After switching to our precision chute, stream width narrowed 33% while gas utilization and fuel rate both improved.
耐磨件没有通用答案。给出炉容、温度区间、当前失效部位与更换周期，我们会给出针对性的材料与结构方案，并附可承诺的寿命目标。 There is no universal answer in wear parts. Share your furnace volume, temperature range, current failure location and replacement cycle, and we will return a targeted material and structural proposal with a committed life target.
填写后我们会在一个工作日内回复。带 * 为必填。 We reply within one business day. Fields marked * are required.
